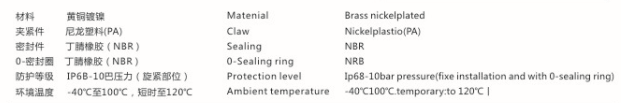

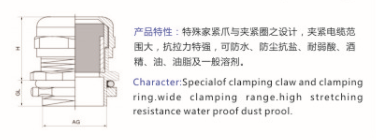

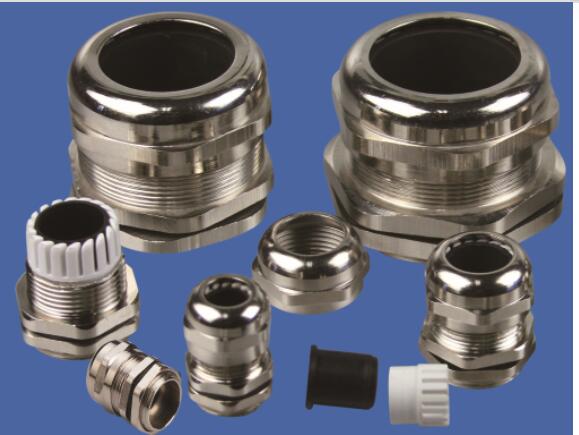

Specificatian of Thread (metric) |
Cable Range |
Outer Diameter of Thread |
Mouring Hole Diameter |
Thread Length |
Thread Length (length ned lype) |
Joint Length | Wfench Diameter |
| PG7 | 8.5-3 | 12 | 12-12.2 | 7 | 10 | 19 | 14 |
| PG9 | 8-4 | 16 | 16-16.2 | 8 | 10 | 20 | 19 |
| PG11 | 10-5 | 16 | 18-18.2 | 8 | 10 | 21 | 20 |
| PG13.5 | 12-6 | 20 | 20-20.2 | 8 | 15 | 22 | 22 |
| PG16 | 14-10 | 22 | 22-22.2 | 8 | 15 | 23 | 24 |
| PG19 | 14-10 | 25 | 25-25.2 | 9 | 16 | 25 | 24/27 |
| PG21 | 18-13 | 28 | 29-29.2 | 9 | 15 | 27 | 30 |
| PG25 | 22-15 | 32 | 32-32.2 | 10 | 15 | 29 | 35 |
| PG29 | 25-18 | 37 | 37-37.2 | 10 | 16 | 31 | 40 |
| PG36 | 33-25 | 47 | 47-47.2 | 11 | 15 | 37 | 50 |
| PG42 | 38-32 | 54 | 54-54.2 | 12 | 15 | 38 | 57 |
| PG48 | 44-37 | 60 | 60-60.2 | 12 | 16 | 38 | 65 |
| PG63 | 52-42 | 72 | 72-72.2 | 13 | 20 | 42 | 77 |
