產品名稱： CONQUER Micro Fuse 微小型保險絲

發布日期： 2018-05-08

點擊數： 6306

二維碼：

簡述： CONQUER Micro Fuse 微小型保險絲

產品詳情

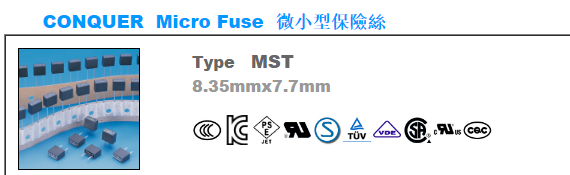

CONQUER Micro Fuse 微小型保險絲

產品規格屬性對照表(Product specifications attribute table)
產品型號 Product Type	印字 Printing	額定電流 (A)	額定電壓 (V)	冷阻值 cold resistance	最大電壓降 maximum voltage drop	I2T值 I2T value	分?jǐn)嗄芰?br /> Breaking capacity	重量(單一產品) Weight(single product)
MST .040	*****	40 mA	250V/300V	12.864	600	0.0158	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .050	*****	50 mA	250V/300V	8.9	550	0.0225	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .063	*****	63 mA	250V/300V	5.4053	480	0.0446	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .080	*****	80 mA	250V/300V	3.687	400	0.076	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .100	*****	100 mA	250V/300V	2.4063	350	0.108	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .125	*****	125 mA	250V/300V	1.6194	300	0.1223	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .160	*****	160 mA	250V/300V	1.2458	280	0.17	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .200	*****	200 mA	250V/300V	0.824	260	0.306	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .250	*****	250 mA	250V/300V	0.63	240	0.6019	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .315	*****	315 mA	250V/300V	0.38	220	0.8216	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .400	*****	400 mA	250V/300V	0.27	200	1.4832	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .500	*****	500 mA	250V/300V	0.195	190	2.7	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .630	*****	630 mA	250V/300V	0.1322	180	3.1792	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST .800	*****	800 mA	250V/300V	0.0907	160	5.76	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 0.630	*****	6.3 A	300V	0.0074	100	310.77	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 001	*****	1 A	250V/300V	0.075	140	8.73	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 002	*****	2 A	250V/300V	0.0316	100	36	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 004	*****	4 A	250V/300V	0.0136	100	158.4	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 005	*****	5 A	250V/300V	0.01	100	202.5	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 008	*****	8 A	250V/300V	0.0057	100	368.64	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 010	*****	10 A	250V/300V	0.0034	100	288	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 1.25	*****	1.25 A	250V/300V	0.055	130	14.766	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 1.60	*****	1.6 A	250V/300V	0.0425	120	23.04	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 2.50	*****	2.5 A	250V/300V	0.0241	100	56.25	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 3.15	*****	3.15 A	250V/300V	0.0188	100	93.768	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
MST 6.30	*****	6.3 A	250V/300V	0.0074	100	310.77	35A or 10*rated current at 250V AC 130A at 250V AC 50A at 300V AC	0.36993
